SLIGHTLY MODIFIED, SPECIALIZED OR COMPLETELY CUSTOM?

If you don’t see the product you’re looking for, contact us.

If an existing solution won’t work for your application, we can modify or redesign any of our products to match your system – or create a completely custom, one-of-a-kind solution. Our range of capabilities goes far beyond the standard product line.

We have a history of success with industries from space exploration to consumer electronics – we’re confident that we have a specialized solution for you.

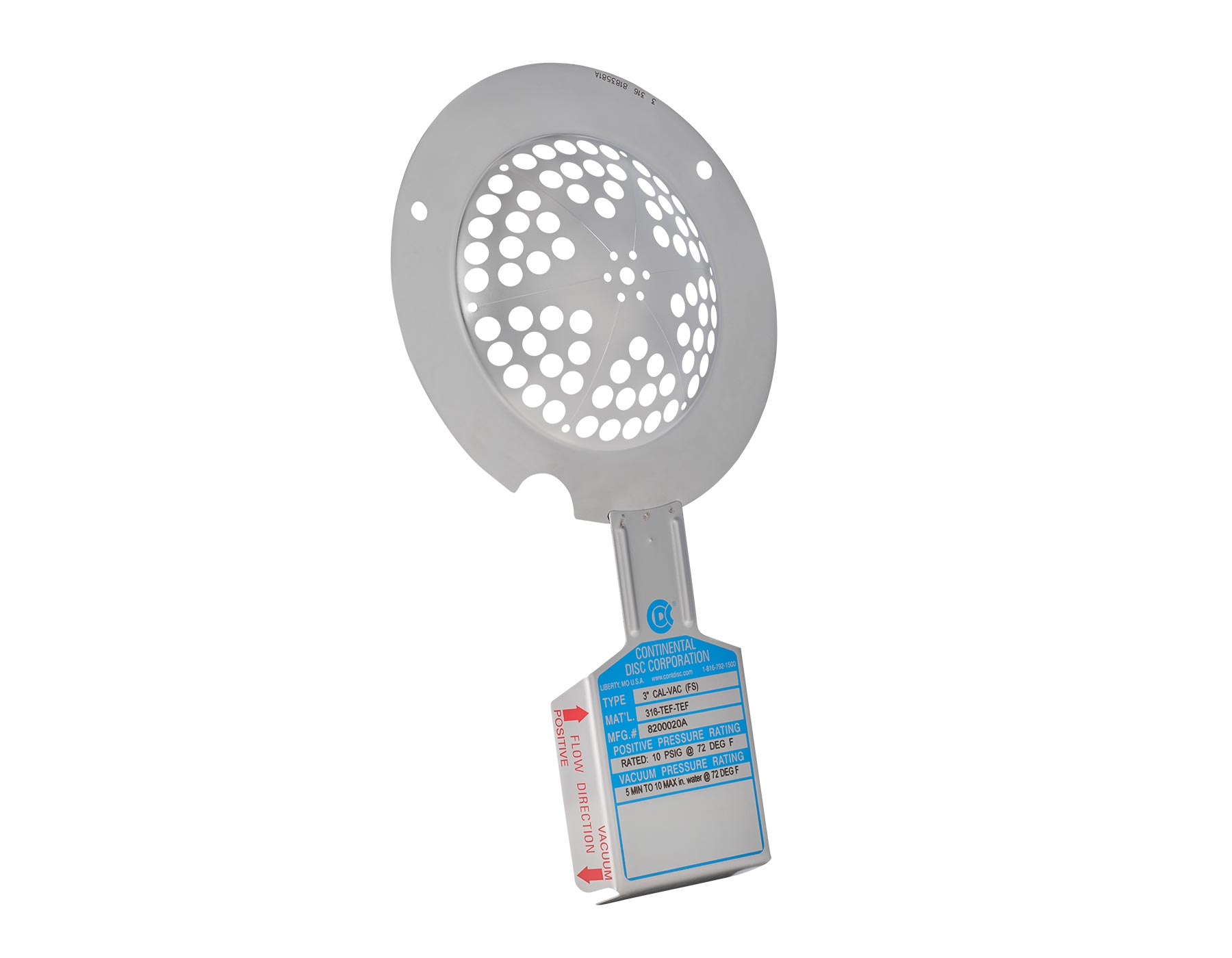

CAL-VAC® Rupture Disc

A double-acting rupture disc with a girdle and knife-blade assembly on one side, and  perforations and a pre-cut section on the other.

Our double-acting design allows the CAL-VAC to do the work of two rupture discs with just one installation point. It relieves low positive pressure (as low as 1 inwc) on one side, while slightly higher negative pressure is relieved from the other. The CAL-VAC’s easy-to-clean flat-seat design reduces product buildup, making it easier to meet FDA requirements.

More Details

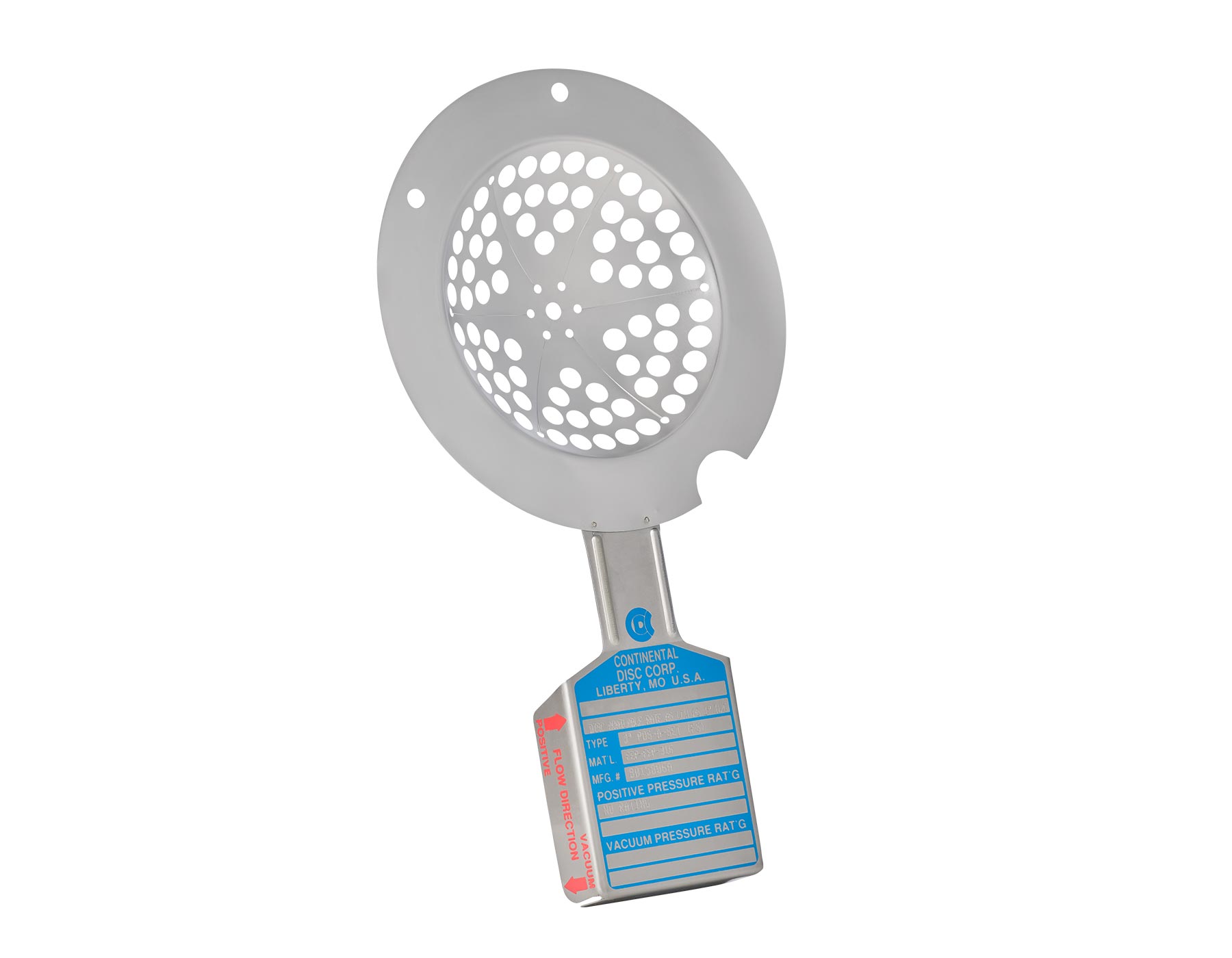

POS-A-SET® Rupture Disc

A double-acting rupture disc with perforations and a pre-cut section on one side, and a girdle and knife-blade assembly on the other – the reverse of the CAL-VAC.

Our double-acting design allows the POS-A-SET to do the work of two rupture discs with just one installation point. It relieves low positive pressure (as low as 1 inwc) on one side, while slightly higher negative pressure is relieved from the other. The POS-A-SET’s easy-to-clean flat-seat design reduces product buildup, making it easier to meet FDA requirements.

More Details

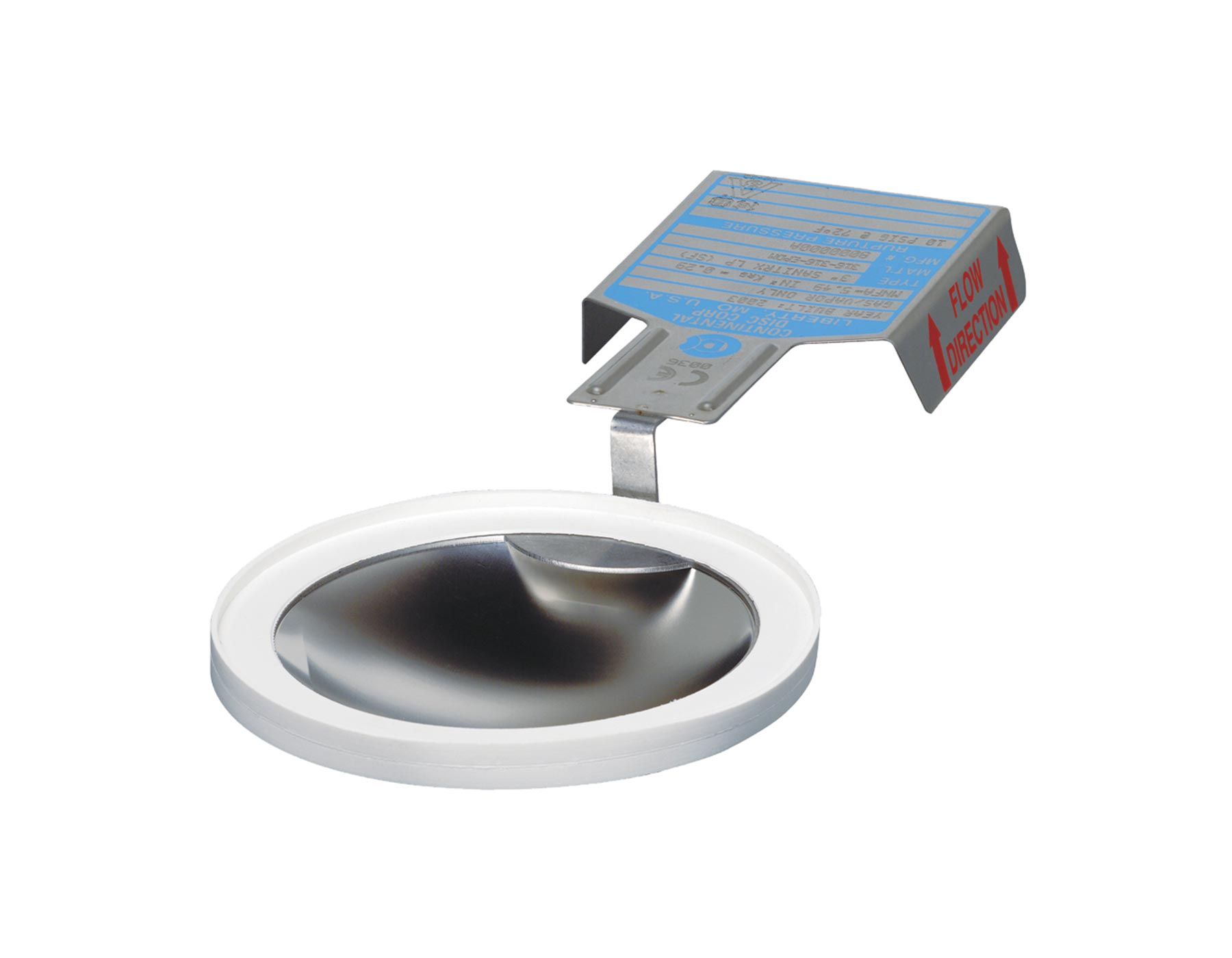

SANITRX LP™ Rupture Disc

A semicircular scored, reverse-acting rupture disc, designed for high-precision sanitary applications – the same features as the SANITRX, modified for lower pressure ratings.

The pharmaceutical, biotech, food and beverage industries rely on the high-precision SANITRX rupture disc family – the perfect combination of industry-leading performance with ASME BPE and USP Class VI compliance.

More Details

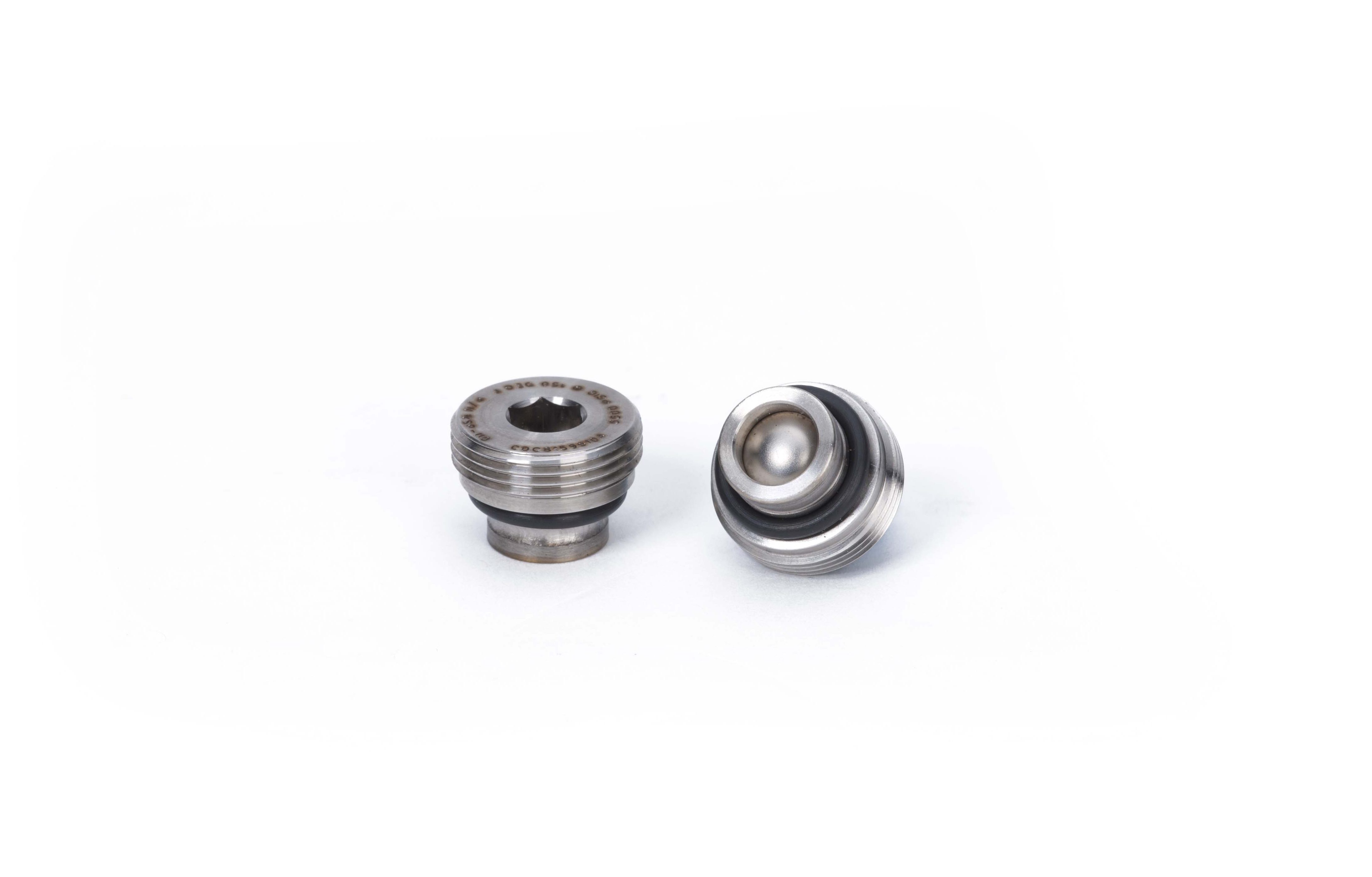

Well Activation and Safety Protection Rupture Discs

A line of rupture discs engineered engineered to replace shear pins and other moving devices to save time and labor on the drill site.

Designed to release pressure to activate tools in the hole or to protect downhole drill components from overpressure failure, our Well Activation and Safety Protection rupture discs use rupture disc technology to achieve high accuracy and reliability. These rupture discs are offered in two burst direction configurations, Type A and Type I.

More Details

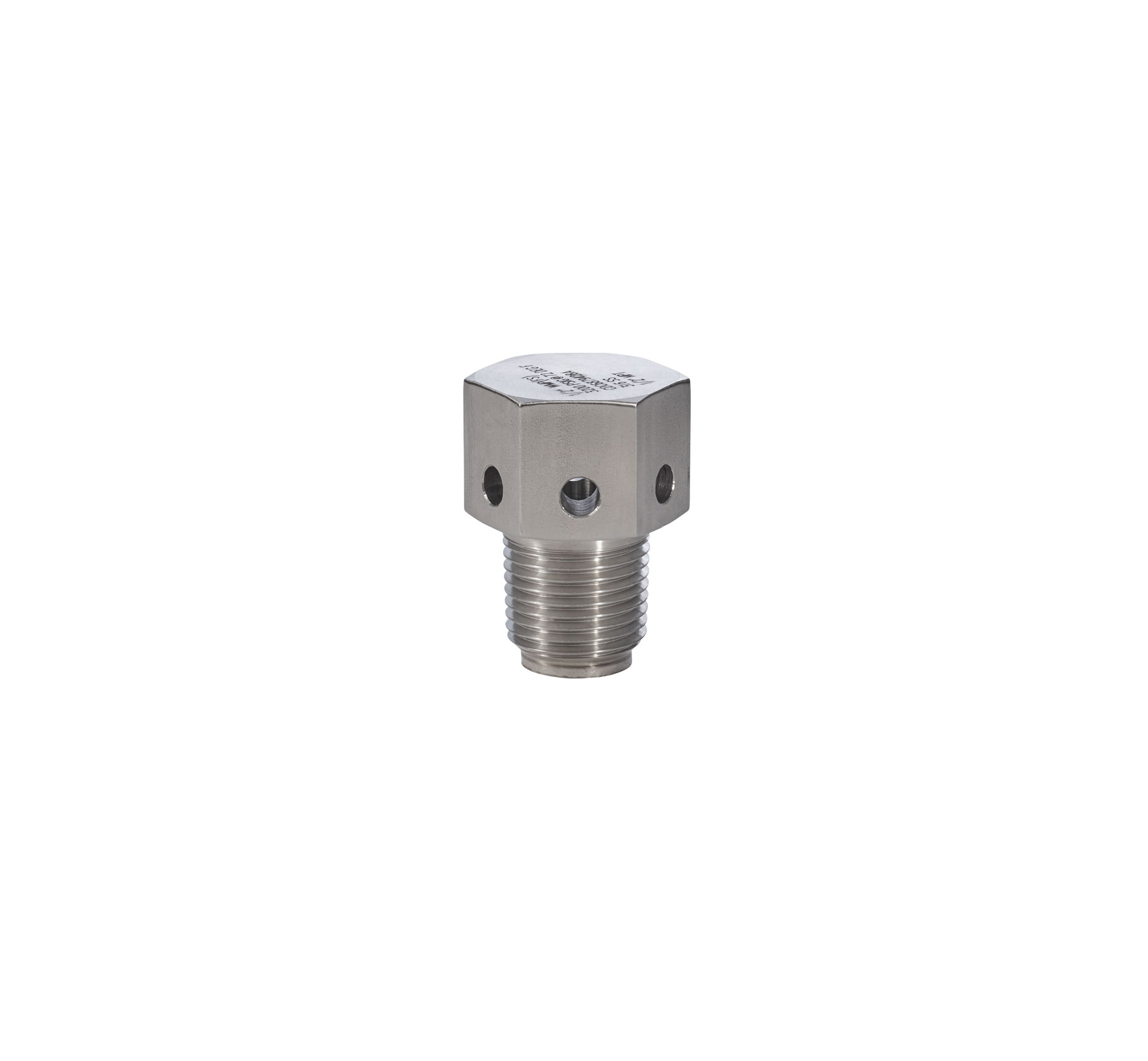

WMP Welded Muffled Plug Rupture Disc Assembly

A solid-metal, tension-acting rupture disc that screws directly into a threaded port, providing precise overpressure protection with simple installation.

Protect equipment, personnel and the environment with the threaded, single-use WMP assembly. The WMP is ideal for applications that discharge to the atmosphere at the rupture disc.

More Details

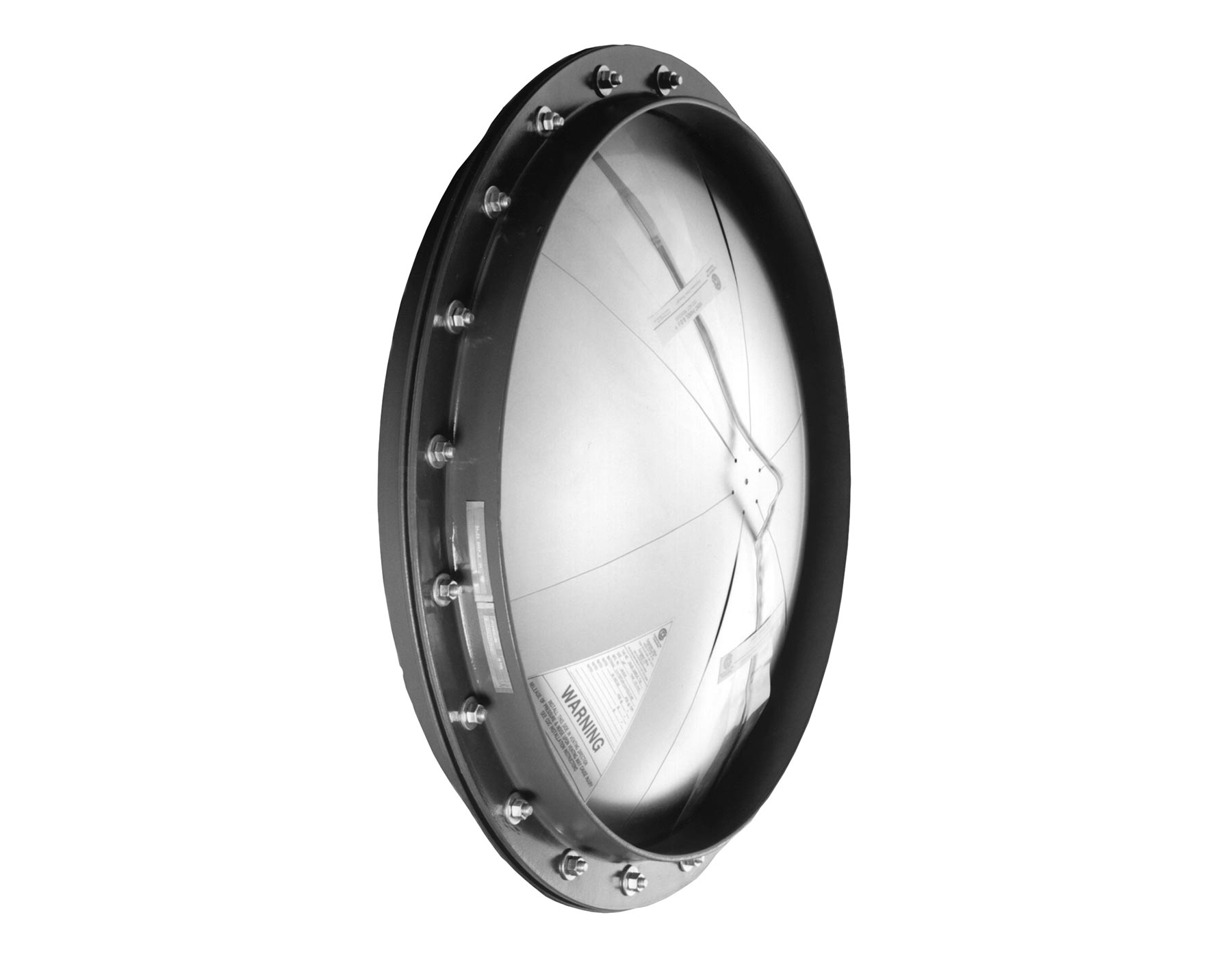

Explosion Vent Panels

A line of large panels in various configurations to provide instantaneous overpressure protection for equipment, rooms, buildings or other enclosures.

These vent panels are designed to allow a full and immediate opening to minimize structural or mechanical damage by expanded gases from the combustion of dust, gases or mists. We supply panels designed for nearly any type of pressurized dry-bulk handling and storage equipment.

More Details

Designed, manufactured and tested for your operation.

We don’t manufacture until you order. Your lot of rupture discs will be built to match the exact specifications of your plant, then performance and proof-pressure tested at the same overpressure conditions they’ll operate in on a daily basis. We’ll ship them only after we’re sure they’ll meet and exceed your expectations.
