GOING BEYOND THE INDUSTRY STANDARD

We know what to do when standard ASME/DIN/JIS won’t cut it.

Sanitary processing, small systems, high-pressure applications and tight regulatory requirements can create complex overpressure relief scenarios that run-of-the-mill ASME/DIN/JIS rupture disc assemblies just can’t handle.

We excel at creating specialized solutions for the most niche alternative applications – and we’re proud to reference our decades of successful custom products as evidence.

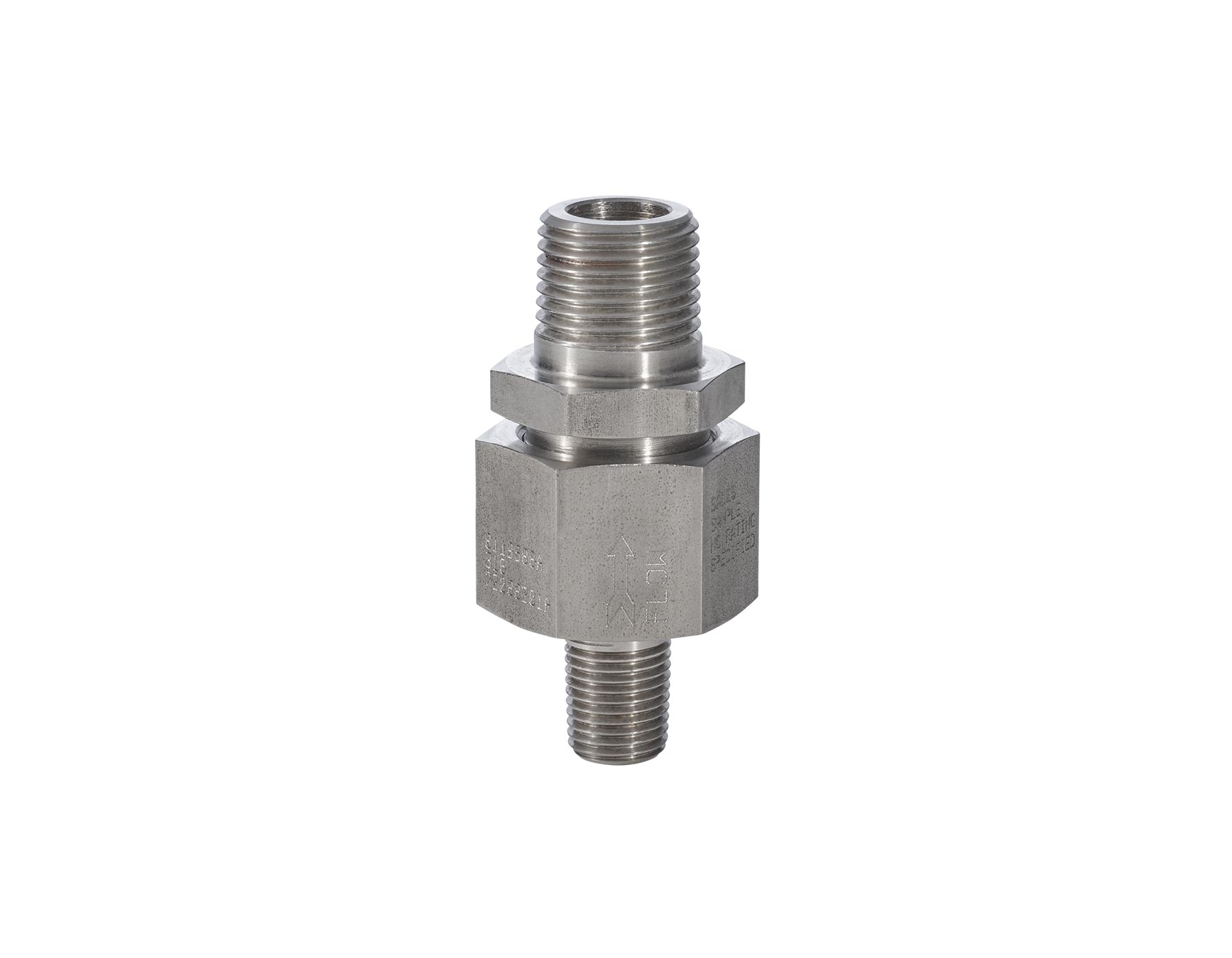

Screw-Type and Tite-Seal Rupture Disc Holder Assemblies

The Screw-Type assembly is a reusable disc holder for systems pressurized up to 15,000 psig, and the Tite-Seal is a sealed, disposable unit for systems under 3,000 psig. Both are designed for miniature applications like A/C and refrigeration units, gas cylinders and portable compressed-air systems.

The Tite-Seal assembly features a rupture disc sealed between brass fittings. After relieving an overpressure condition, changeout is easily performed by replacing the entire assembly.

A Standard, Composite, or SRA rupture disc is supplied separately from the Screw-Type holder.

Screw-Type and Tite-Seal assemblies are available with a variety of inlet and outlet connections to accommodate various applications.

More Details

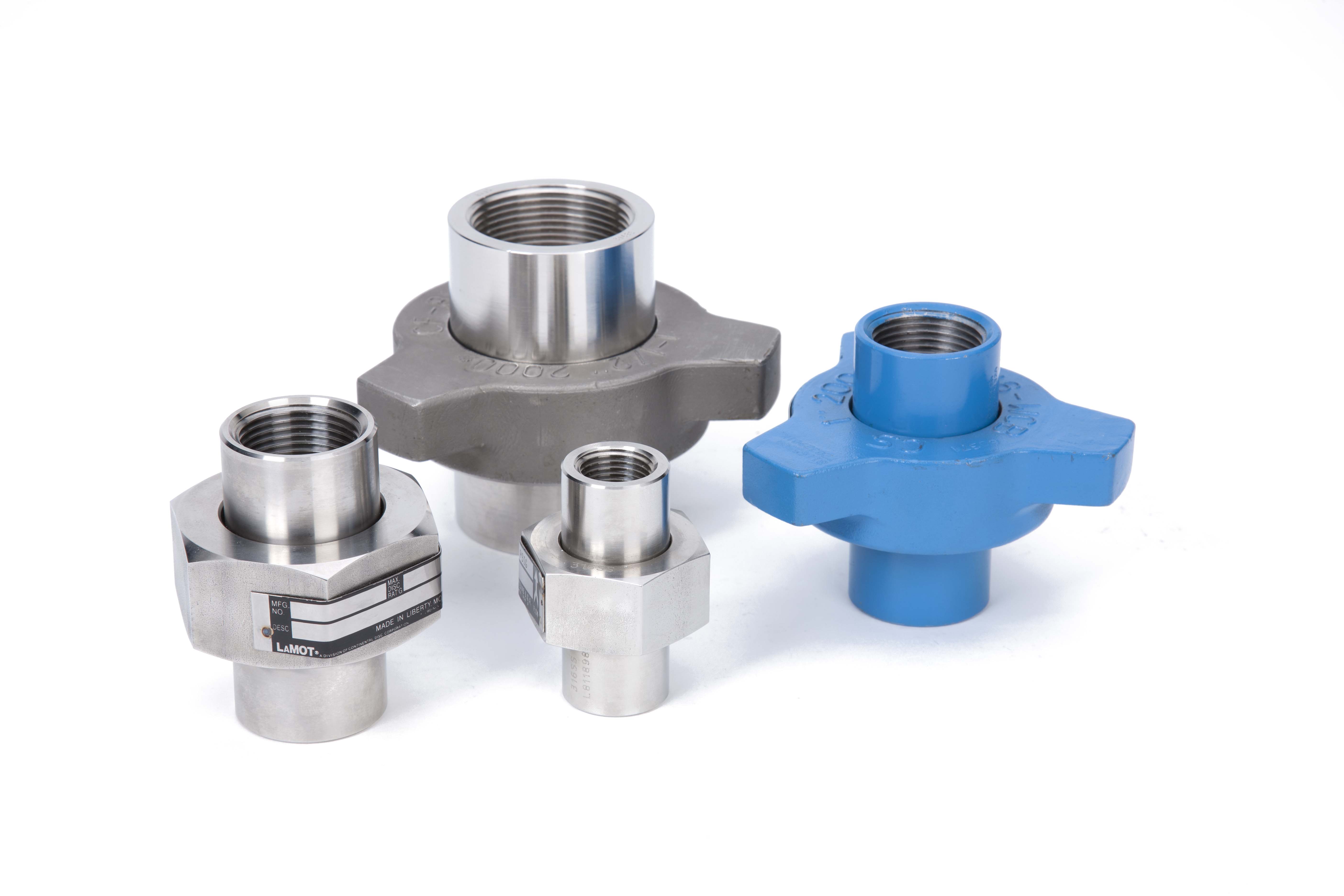

Union Holder Assembly

A rupture disc holder specifically designed to provide flexibility and ease of installation in tight piping configurations.

The Union holder assembly works with standard or composite-type rupture discs. SRA Union and Union-type holders are available for pressure ranges up to 6,000 psig, depending on disc size and type. These precisely built holders combine remarkable ease of installation with high-pressure ratings in pipe sizes of 2″ (50mm) or less.

More Details

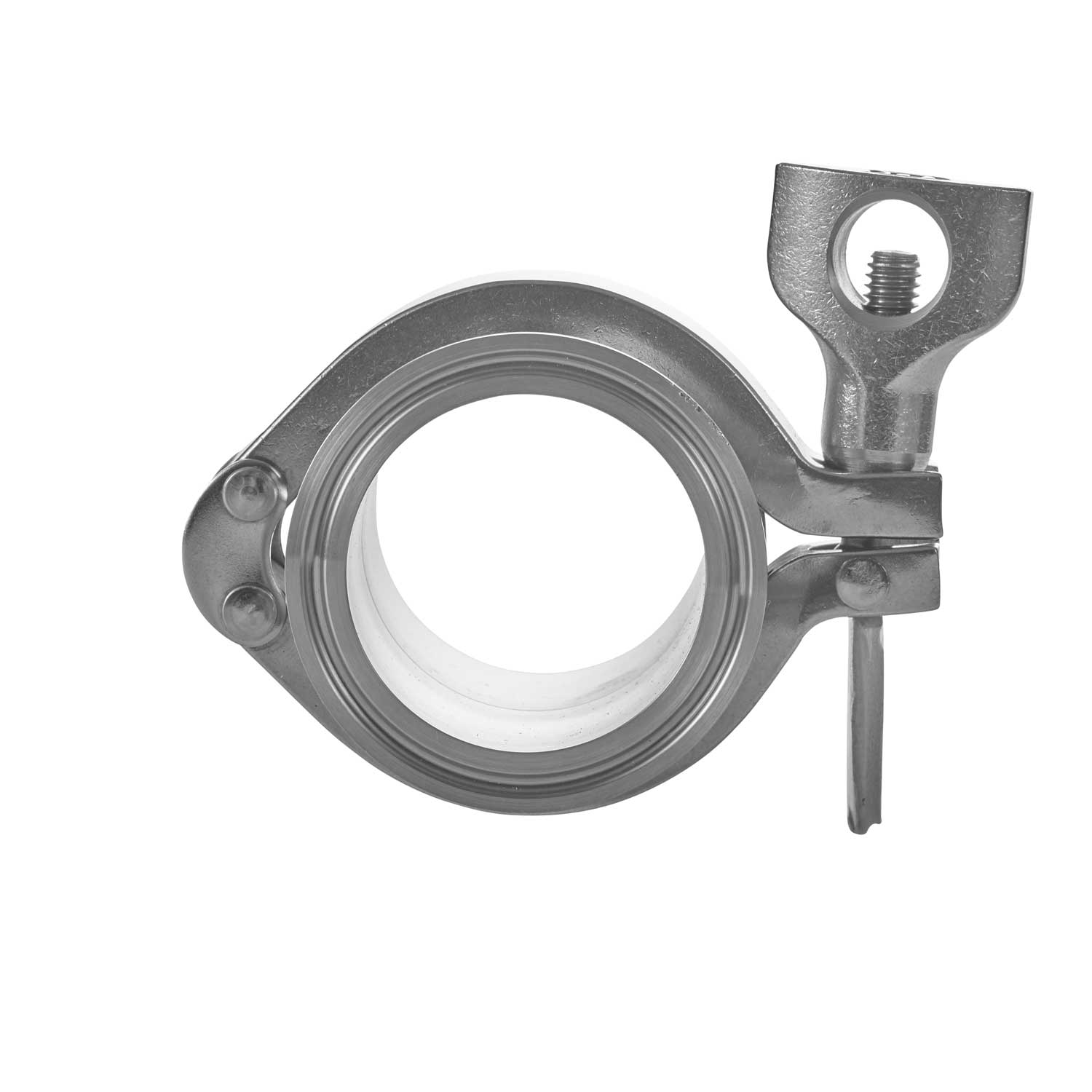

Sanitary Rupture Disc Holder Fitting Assembly

A quick-release, easy-to-clean rupture disc holder perfect for applications where product purity and corrosion resistance are critical.

This fitting assembly is trusted in dairy, pharmaceutical, food processing, canning, cosmetic and chemical industries.

More Details

CLEAN-SWEEP® Assembly

A rupture disc holder that reduces dead space in pipe-tee assemblies, eliminating buildup and preventing interference or overpressure.

Keep your rupture disc clean, accurate and operational with the CLEAN-SWEEP Assembly. Designed for viscous media processes, the CLEAN-SWEEP Assembly is an ideal replacement for rupture disc assemblies where product buildup could affect the proper operation of the rupture disc. With the CLEAN-SWEEP Assembly installed, the rupture disc mounts directly adjacent to the process flow.

More Details

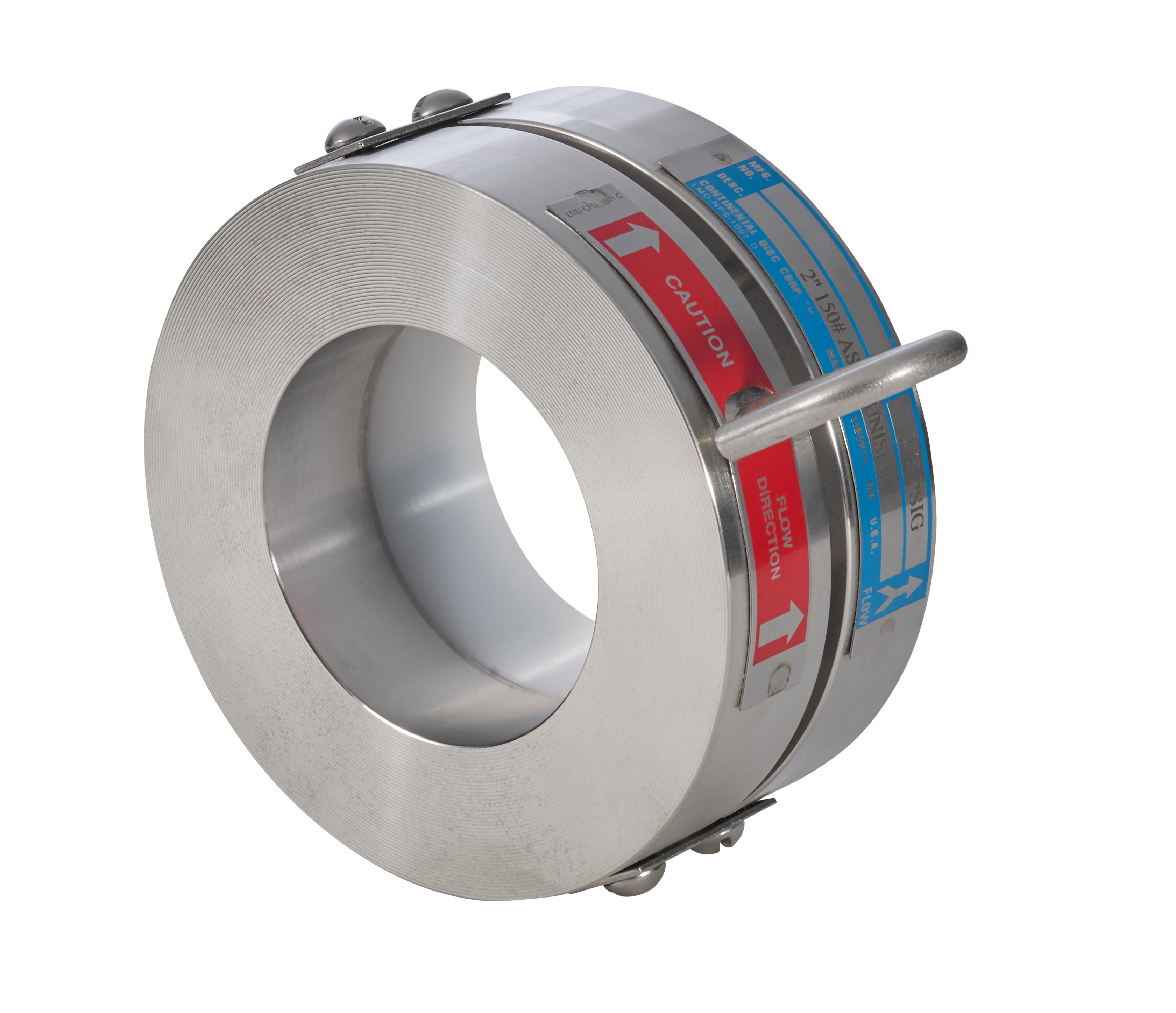

Unisert Assembly

A flat seat rupture disc holder featuring superior sealing capabilities when used with MICRO X or Composite Flat Seat rupture discs.

The UNISERT assembly was designed to create a perfect seal every time when used with non-fragmenting MICRO X or Composite Flat Seat (CFS) rupture discs. For use with any burst or pressure rating of the MICRO X or CFS rupture discs.

More Details

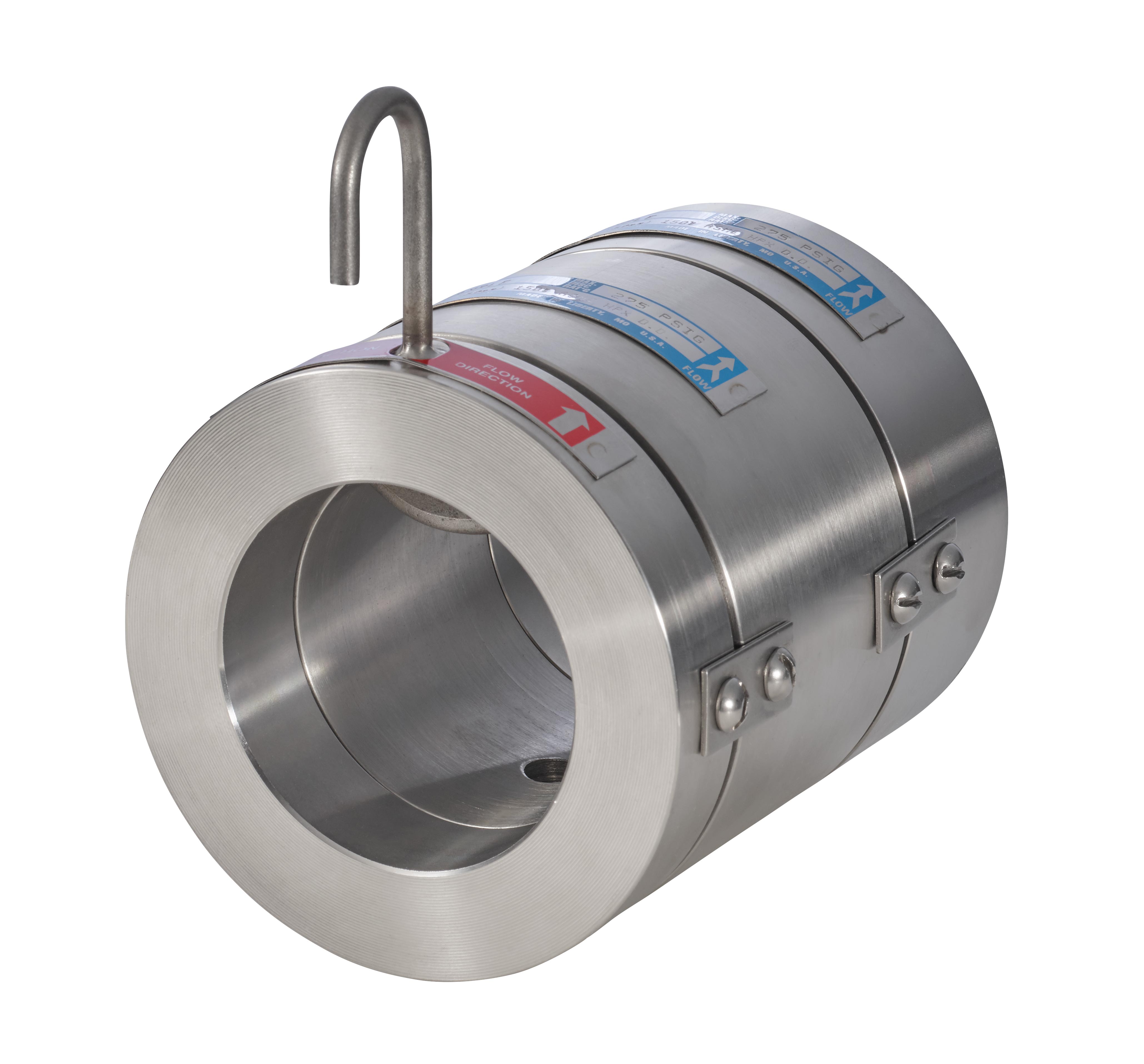

Double-Disc Assembly

A rupture disc holder consisting of three holder components (inlet, mid-flange and outlet piece) and two rupture discs.

Use a double-disc assembly to simplify your piping arrangements, eliminate back pressure, detect leaks or create an actuated rapid-opening system. The first rupture disc fits between the inlet and the mid-flange, and the second goes between the mid-flange and outlet.

More Details

We’re here to support you.

Our customer service starts before the sale, as we communicate with you to better understand your needs. We don’t manufacture anything until we’re sure it’s a perfect fit for your system – we’ll even survey your facility to better understand how our products will be used. After installation, we’re here to support and stand behind our products.
