SANITRX LPX Sanitary Rupture Disc

The pharmaceutical, biotech, food and beverage industries rely on the high-precision SANITRX rupture disc family – the perfect combination of industry-leading performance with ASME BPE, USP Class VI and 3A compliance.

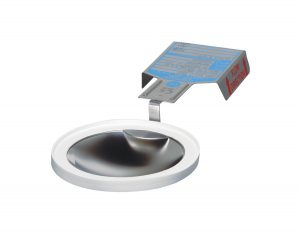

The SANITRX LPX rupture disc is a stainless steel, semicircular scored, reverse acting rupture disc designed for sanitary gas applications that require pressures below SANITRX HPX.

SANITRX LPX Sanitary Rupture Disc

The versatility of the SANITRX LPX

SANITRX rupture discs can be used in a wide range of sanitary and hygienic applications throughout pharmaceutical, biotech, food and beverage facilities. They fit between industry-standard sanitary ferrules, NovAseptic flanges or SANITRX fittings.

To optimize service life and rupture disc performance, we manufacture and test each order of SANITRX rupture discs for gas (compressible) relief conditions.

Fluoropolymer coating is available for corrosion protection on process or vent sides. Electropolished surface finishes are also available. ASME Code Section VIII, Division 1 compliance available when requested.

ASME BPE Standard
The SANITRX LPX sanitary rupture disc family is in compliance with the essential criteria of the ASME BPE standard as follows:

  • Clean-in-place and Steam-in-place cleanable
  • Withstands temperatures of 130°C where steam sterilization is required
  • Internal surfaces and sanitary fittings meet SF1 (20 Ra microinch) standard surface-finish requirements
  • USP Class VI-certified gaskets are fully traceable, include no animal derivatives and meet other ASME BPE standards
  • Discs and fittings are usually made out of 316L SS material; alternates are available if specified by users
  • Fully traceable materials
  • Fittings are marked and packaged in accordance

This standard provides requirements applicable to the design of equipment used in the biotech, pharmaceutical and personal care industries, including aspects related to sterility and cleanability, materials of construction, dimensions and tolerances, surface finish, material joining and seals.

The standard applies to components in contact with the product, raw materials or intermediates. Systems that are a critical part of the manufacturing process, such as water for injection (WFI), clean steam, filtration and intermediate storage may also abide by this standard.

Nominal Size Range: 1.5″ – 3″ (40 mm – 80 mm)

Burst Pressure Range: 5.8 psig – 10 psig (0,4 barg – 0,689 barg)

Maximum Recommended Operating Ratio: 90% of [Rated (Marked) Burst Pressure – Burst Tolerance]

Seating Configuration: Industry-standard sanitary ferrules, NovAseptic flanges or SANITRX fittings

Service: Gas

BDI Alarm System Compatible?: Yes

ASME Code Symbol Stamp Available?: Yes

Materials not indicated or shown may be available by special design. Contact us for more information.

Industry Applications

Food & Beverage Processing
Food & Beverage Processing
Food & Beverage Processing

We understand that product purity and safety are critical in food-related industries, so we provide hygienic and aseptic vessels and piping to assure compliance with FDA and 3A requirements.

Pharmaceutical & Biotechnology
Pharmaceutical & Biotechnology
Pharmaceutical & Biotechnology

We focus on solutions to meet the stringent requirements of pharmaceutical processing – wherever perfectly hygienic facilities and hermetically sealed antiseptic systems are a must.
